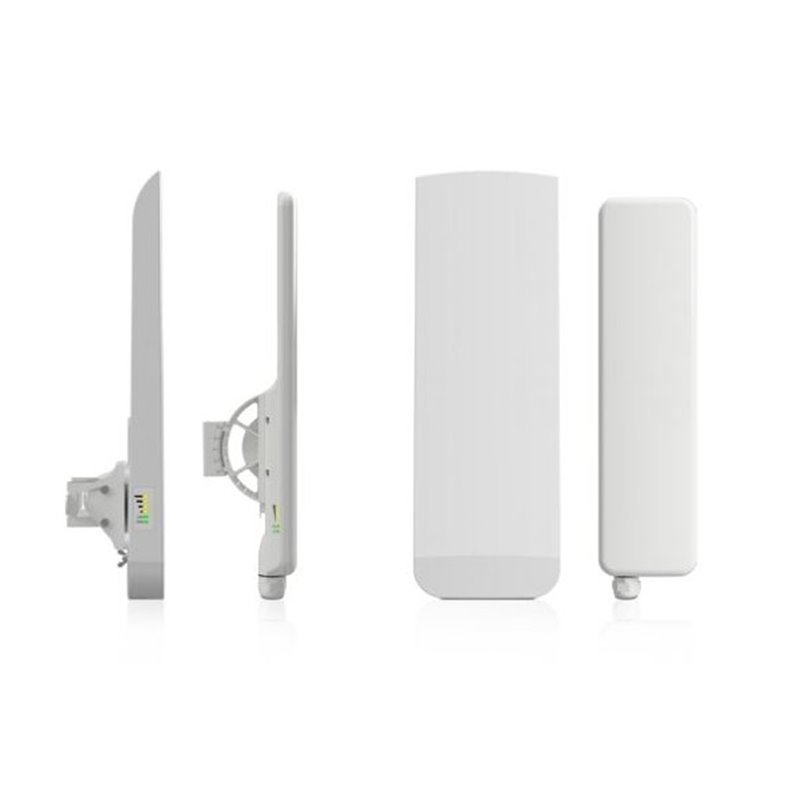

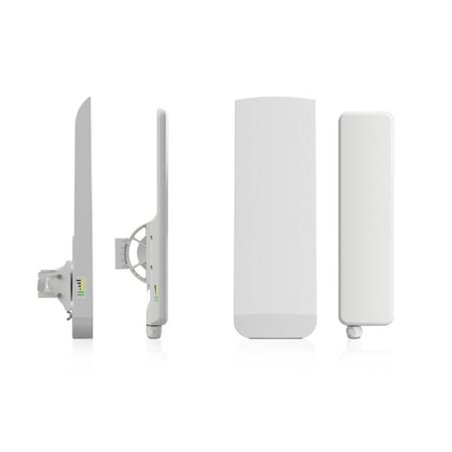

LigoWave 5GHz Base Station LigoDLB 5-90 ac with Integrated Antenna
Price (incl. tax): €0.00
Price (excl. tax): €0.00
€399.99
Tax included
Equipped with a 750MHz QCA 9563 CPU, a QCA 9882 radio, and 64MB RAM/16MB Flash Memory, the LigoDLB 5-90ac brings efficiency to the next level.
DLB 5-90ac
Wireless
WLAN standard: IEEE 802.11a/n/ac, iPoll 3
Radio mode: MIMO 2×2
Radio frequency band: 5,150 - 5,850GHz (FCC 5,150 - 5,250 and 5,725 - 5,850GHz)
Transmit power: Up to 30dBm (country dependent)
Channel size: 5, 10, 20, 40, 80MHz
Modulation schemes:
802.11a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK)
Data rates:
802.11ac @ 40MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30Mbps
802.11ac @ 80MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65Mbps
Error correction: FEC, LDPC
Duplexing scheme: Time division duplex
Antenna
Type: Integrated dual-polarized 90 degree sector antenna
Gain: 18dBi
DLB 5-90ac
Data sheet
- Antenna gain
- 18dBi
- Frequency
- 5GHz
- Memory
- 64MB
- Wireless standard
- 802.11a/n/ac
- Power
- PoE
- TX power (Max)
- 30dBm / 1W
- Number of chains
- 2
- Data Rate (Max) 5Ghz
- 867Mbit/s
- CPU
- 750MHz
- 10/100/1000 Ethernet ports
- 1
