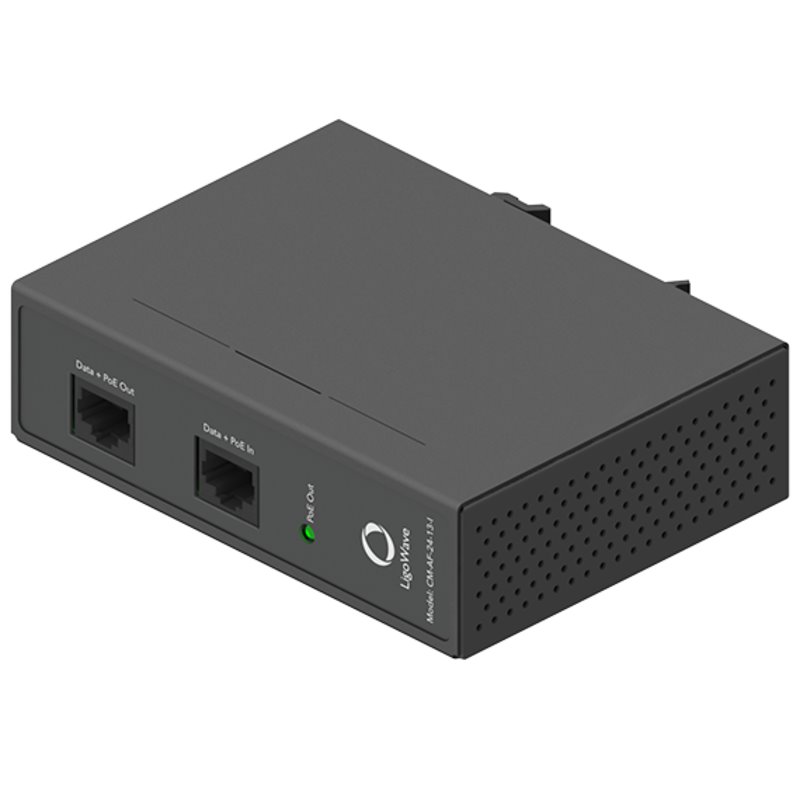

LigoWave 48V to 24V Gigabit PoE Converter
Price (incl. tax): €0.00
Price (excl. tax): €0.00
€64.99
Tax included
A converter from RJ-45 802.3 af/at (48-56VDC) to RJ-45 (24 VDC)
CM-AF-48-24-13-I
This LigoPoE converter lets you use any 48V PoE source to power LigoWave devices.
The converter has metal enclosure, DIN rail mounting option, grounding pin, surge protection and wide operating temperature range that lets use it for industrial applications.
Electrical specifications
|
Input voltage |
48-56V, 802.3af/at |
|
Output voltage |
24 VDC |
|
Output power |
13 W |
|
Output PoE type |
Passive on 4,5(+) and 7,8(-) pins |
|
Data rate |
10/100/1000 Mbps |
|
Surge protection |
2 kV line to line, 5 kV line to ground (on output port) |
Physical specifications
|
Data + Power output jack |
RJ-45 |
|
DC Input Port |
Terminal Block Connector |
|
Input, Output Jack |
RJ-45 |
|
Dimensions |
117 x 87 x 34 mm |
|
Weight |
300 g |
|
Operating temperature |
-10 to +65 C |
CM-AF-48-24-13-I
Comments (0)
No customer reviews for the moment.
A converter from RJ-45 802.3 af/at (48-56VDC) to RJ-45 (24 VDC)
